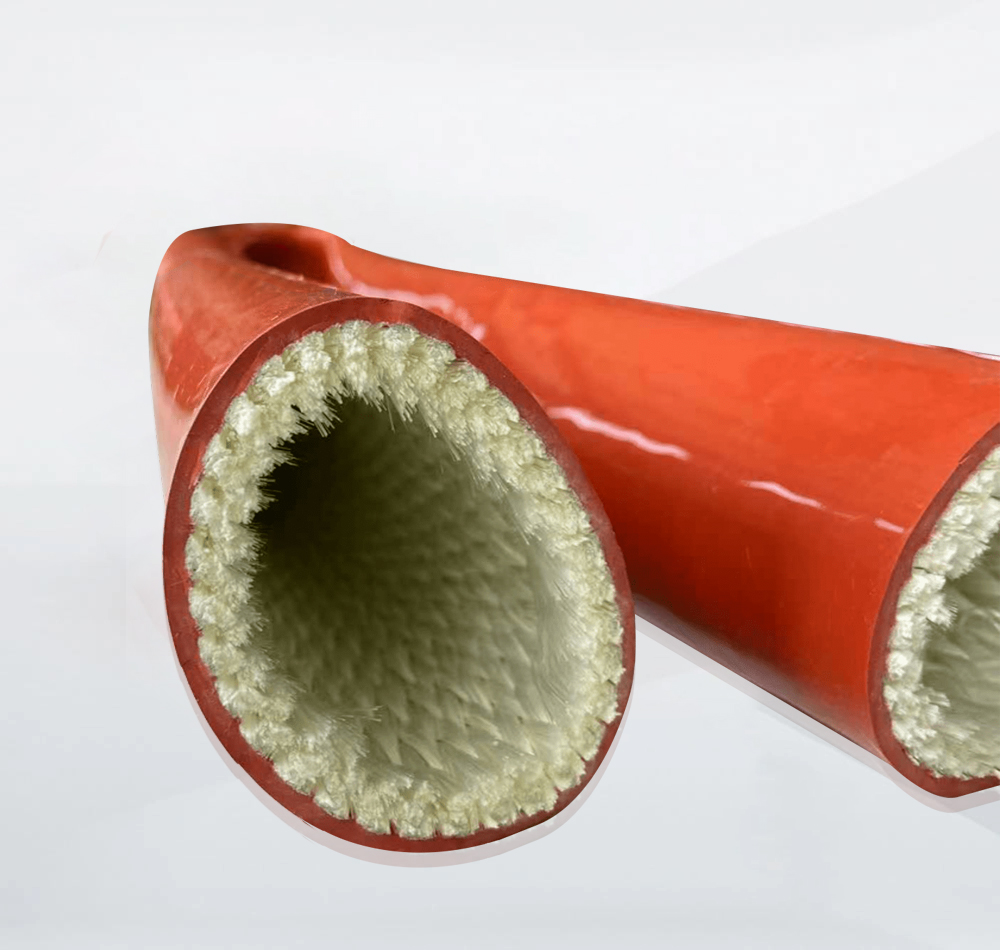

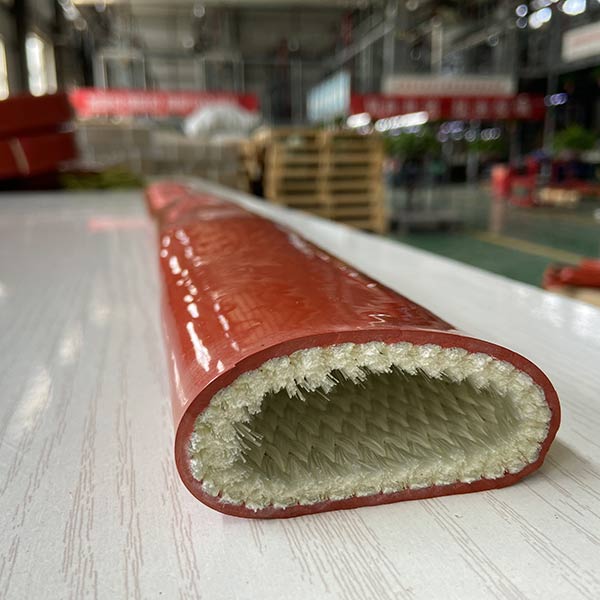

Aerotype Fire Sleeve

Aerotype Fire Sleeve has a thicker thickness and fabric density,a smoother surface, higher strength and better abrasion performance.
Is ideal for protecting against high under bonnet temperatures which makes it perfect for use on hoses, wiring, oil and fuel lines. The Sleeve is made from woven insulated glass fibre braided sleeve that is heavily coated with 100% iron oxide silicone rubber.
The Sleeve can withstand up to 1650°C ambient heat and 560°C of direct continuous heat which makes it perfect for insulating wires, oil and fuel lines from under bonnet heat.
Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Product Description
Date Sheet

Key Features:

Oil And Water Resistant

Can Be Shaped To Fit The Tightest Bends

Includes Fire Tape To Seal Sleeve Ends

Glass Fiber Sleeve With Silicone Rubber Coating

Perfect For Insulating Wires, Oil & Fuel Lines

Protects Against Dirt And Road Grime

Withstands Up To 1650°C Ambient Heat

Withstands560°C Of Direct Continuous Heat


Inside dia.(mm)Inside dia.(inch)wall thickness (mm)Tolerance(mm）roll length（m）ctn size（cm）No./ctn（m）G.W.（kg）
Φ61/41.5±0.155047*47*1010022
Φ85/161.5±0.155047*47*1010024.5
Φ103/82±0.202547*47*1010028
Φ117/162±0.202547*47*1010029.5
Φ131/22±0.202547*47*1010030.2
Φ165/82±0.202547*47*105016.5
Φ193/42±0.202547*47*105020.4
Φ227/82±0.202547*47*105021.5
Φ2512±0.302547*47*105024.5
Φ291 1/82±0.302547*47*105025.5
Φ321 1/42±0.302547*47*105027.5
Φ351 3/83±0.302547*47*155028.5
Φ381 1/23±0.302547*47*155034
Φ401 3/53±0.302547*47*155034.5
Φ411 5/83±0.302547*47*155035
Φ451 3/43±0.302547*47*155036
Φ481 7/83±0.302547*47*155037
Φ5123±0.352552*52*205038.2
Φ552 1/53.5±0.352052*52*202020.5
Φ572 1/43.5±0.352052*52*202021
Φ602 3/83.5±0.352052*52*202023.5
Φ642 1/23.5±0.352052*52*202024
Φ652 3/53.5±0.352052*52*202024.5
Φ702 3/43.5±0.402052*52*202027.5
Φ7634±0.402052*52*202028.2
Φ803 1/54±0.402052*52*202032.5
Φ833 1/44±0.402052*52*202033.2
Φ853 3/84±0.402052*52*202033.8
Φ893 1/24±0.501052*52*201018.5
Φ903 9/164±0.501052*52*201019
Φ953 3/44±0.501052*52*201019.5
Φ10245±0.501052*52*201020.2
Φ1104 1/35±0.501054*54*201022
Φ1144 1/25±0.501054*54*201023.8
Φ1204 4/55±0.501054*54*201026.8
Φ12755±0.601054*54*201028.5
